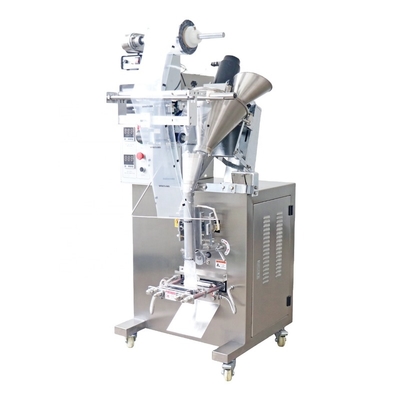

Small Round Shape Filter Sachets Tea Powder Bag Coffee Pod Chemical Commercial Automatic Packing Packaging Machine

1 Set
MOQ
Small Round Shape Filter Sachets Tea Powder Bag Coffee Pod Chemical Commercial Automatic Packing Packaging Machine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Multi-Function Packaging Machine
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Weight (KG): 240
Showroom Location: None
Condition: New
Function: FILLING, Labeling, Sealing, SLITTING
Application: Chemical, Commodity, Food, Medical
Packaging Type: Bags, Capsule, Cartons, Film, Foil, Pouch, Stand-up Pouch
Packaging Material: Paper, Plastic
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220V/50HZ
Dimension(L*W*H): L)900*(w)800*(H)1600mm
Warranty: 1 Year
Key Selling Points: High-accuracy
Marketing Type: Other
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 2 years
Core Components: Motor, PLC, Gear
Production Capacity: 40bag/min
After-sales Service Provided: Engineers available to service machinery overseas
Sealing Forms: Middle, 3-sides, 4-sides
Bag Size: L(40-180mm)* W(30-140mm)
Packing Range: 0.5-150g(Depending on the material )
Packing Speed: 20-40bags/min
Metering Methods: Screw blanking
After Warranty Service: Spare parts
Local-Service Location: None
Informazioni di base
Termini di pagamento e spedizione
Packaging Details: Within: film packaging -Outside: wooden packaging
Descrizione di prodotto


1. The whole structure:This machine integrates mechanical and electrical together. And the whole machine is controlled by PLC(Programmable Logic Controller).
2. Photoelectric on membrane:It adopts PLC control photoelectric correction system, and equipped with high-precision stepping motor, to ensure the integrity of the packaging film pattern, it can control the system of complete synchronization,length fixing, orientation and speed of whole machine.
3. Adjusted the bag length: If turn off on the membrane system, you can adjust the parameter to adjust the bag length, although the film width is fixed, so as to adjust the amount of packaging.
4. Measurement and subpackage method: The machine according to the measuring cup size and measuring the regulating handle manually adjust to realize partial shipments and measurement function.
5. All functions: this machine is fully automatic machine. Can automatic accounting bag (film), on film, The date of printing (need to match the ribbon code printer linkage device), measuring, filling, sealing, cutting film ,and so on.

Product Description
Mode
HP-100P
HP500P
HP1000P
Packing speed
15-50Packs/min
15-50Packs/min
15-50Packs/min
package style
Back seal or three-side, four-side seal
Back seal or three-side, four-side seal
Back seal or three-side, four-side seal
Sealing form
Tooth shape or customized flat mouth shape
Tooth shape or customized flat mouth shape
Tooth shape or customized flat mouth shape
Sealing temperature
0-300℃
0-300℃
0-300℃
Power
220V/50HZ 1550W
220V/50HZ   1550W
220V/50HZ   1550W
Maximum film width
300mm/400mm
300mm/400mm
300mm/400mm
Applicable film
Composite packaging film
Composite packaging film
Composite packaging film
Packing quantity
1-100g
50-500g
100-1000G
Bag size
20-140*200mm
20-200*270mm
20-200*270mm
Product Size
75*90*160cm
80*108*200cm
80*108*200cm
Weight
240kg
300kg
320kg

Tips.

This model is a customized model, and the parameters are based on the standard model as a model. The actual parameters are subject to the actual product.

Stainless steel hopper.

Equipped with motor and stepping motor + screw mixing system, uniform feeding

Coding system

Can print the date and production batch number, etc., the printing is clear.

Microcomputer touch operation screen.

Controlled by a microcomputer, the working speed of the packaging weight and the length of the bag can be easily set. Ensure that the operator uses the machine as soon as possible.

Digital display temperature control.

Horizontal sealing temperature and vertical sealing temperature can be set separately, the packaging is more beautiful

Vertical sealing system.

The sealing and cutting device can accurately pack the bag after the operator sets the length of the bag. According to your needs, we can tailor the machine for the back/three-side/four-side sealing bag.

Horizontal sealing system.

The sealing and cutting device can accurately pack the bag after the operator sets the length of the bag. According to your needs, we can tailor the machine for the back/three-side/four-side sealing bag.
Electronic scale packaging machine
Granule packaging machine
Paste packaging machine

Screw packing machine

Puffed Food Packaging Machine

Powder filling machine
Granule filling machine
Electronic scale granule filling machine
Feeder
Service description

Q: Are you trading company or manufacturer ?

A: We are factory and trade union business,But we are specialized in trade business.

Q: How long is your delivery time?

A: Generally it is 5-10 days. or it is 15-30 days if the goods are not in stock.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free chargen, but do not pay the cost of freight.

Q: What is your terms of payment ?

A:  30% T/T in advance ,balance before shippment.Or pay through online trading platform

If you have another question, pls feel free to contact us as below
