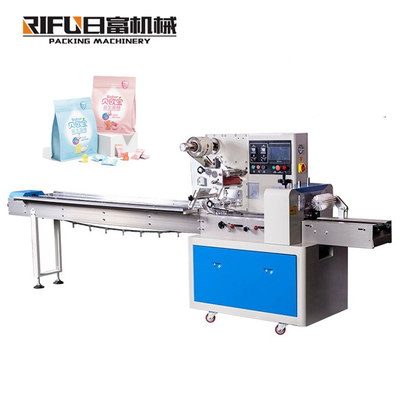

Automatic General Type Beverage Pillow Multifunctional Packaging Food Machine

1 Set
MOQ
$3,800.00(1 - 1 Sets) $3,700.00(2 - 2 Sets) $3,600.00(>=3 Sets)
prezzo
Automatic General Type Beverage Pillow Multifunctional Packaging Food Machine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Multi-Function Packaging Machine
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms
Showroom Location: None
Condition: New
Function: FILLING, Wrapping, Sealing
Application: Food, Commodity, Medical, Machinery & Hardware, APPAREL, Textiles
Packaging Type: Bags, Pouch
Packaging Material: Plastic, Paper
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220V
Dimension(L*W*H): 3770*670*1450mm
Warranty: 1 Year
Key Selling Points: Easy to Operate
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 2 years
Core Components: Motor, PLC
Production Capacity: 30bag/min
Product name: Pillow Bag Packing Machine
Control system: PLC
Packing material: OPP/CPP/PE/PET
Usage: Bag Packing
Bag type: pillow bag/back sealing bag
Keyword: Packaging Machinery Equipment
Advantage: Easy Control
Optional Devices: Date Coder, Air-filling Device, Punching Device
Description: Easy Operation
Automaticity: Fully Auto
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Certificazione: CE
Informazioni di base
Certificazione: CE
Termini di pagamento e spedizione
Descrizione di prodotto
Product Description
Automatic Horizontal Bread Pillow Packing and Sealing Machine
Packaging Application
Automatic flow packing machine is a widely used packing machine. Suitable for all kinds of product packaging. Including medical
supplies, vegetables and meat, baked bread, snacks and candy, daily necessities, hardware accessories, etc.

Machine characteristics

1. Double frequency conversion control, the bag length canbe set and cut, no need to adjust the air, one step in place, saving time and film.
2. Man-machine interface, parameter setting is convenient and quick.
3. Fault self-recognize function, fault display at a glance.
4. High-sensitivity photoelectric eye color tracking, digital input sealing position, make sealing position more accurate.
5. Temperature independent PID control, better suitable for various packaging materials.
6. Positioning stop function, no sticky kuife, no waste film.
7. The transmission system is simple, the work is more reliable, and maintenance is more convenient.
8. All control is implemented by software, which is convenient for function adjustment and technical upgrade, and never lags behind.

Packing Effect

The effect after packaging is back-seal bag.
According to demand, other devices can be customized or upgraded to meet other models. For example, pillow bag with hole, bag with label, gusset bag, etc.
Specification
Model
RF-250B/D
RF-320B/D
RF-350B/D
RF-400B/D
RF-450D
RF-600D
Film Width
Max.250mm
Max.320mm
Max.350mm
Max.400mm
Max.450mm
Max.600mm
Bag Length
65~190 or 120~280mm
/ 90~220 or 150~330mm
130~320
/180~400mm
120~450mm
130~450mm
Bag Width
30~110mm
50~150mm
50~160mm
50~190mm
60~210mm
60~280mm
Product Height
Max.40/50mm
Max.45/80mm
Max.110mm
Roll Diameter
Max.320mm
Packaging Speed
40~230 bags/min
30~180 bags/min
30~150 bags/min
Machine Power
220V,50/60Hz,2.4KW
Machine Size
(L*W*H)mm
3770*670
*1450
3770*720
*1450
3770*720
*1450
4020*770
*1450
3990*900
*1468
3990*1000
*1468
Machine Weight
800kg
900kg
1050kg
Optional Device
Date Coder, Air-filling Device, Punching Device
