Caratteristiche

Specificazioni

Type: Multi-Function Packaging Machine

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction worksÂ , Energy & Mining, Food & Bevera

Weight (KG): 350

Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sr

Condition: New

Function: FILLING, Labeling, Sealing, SLITTING, Wrapping

Application: APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, Hair Brush

Packaging Type: Bags, CANS, case, Film, Foil, Pouch, Stand-up Pouch

Packaging Material: Paper, Plastic, Heat-sealing film

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 220-380V

Dimension(L*W*H): (L)3770*(W)670*(H)1450mm

Warranty: 2 years

Key Selling Points: Multifunctional

Marketing Type: New Product 2020

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 2 years

Core Components: Motor, PLC, Other

Production Capacity: 40bag/min, 30bag/min

Modle packaging type: Automatic Packing Machine

Products heigh: Max.55mm

Packing speed: 50-230bags/min

Film roll width: Max.250mm

Film roll length: Max.280mm

The biggest roll diameter: Max.300mm

Film Thinkness: 0.04-0.06mm

Packaging film material: OPP/CPP,OPP/CE,MST/PE, PET ETC.

Power: 220V,50/60HZ,2.4KVA

Net weight/Gross Weight: 850kg/950kg

Informazioni di base

Termini di pagamento e spedizione

Descrizione di prodotto

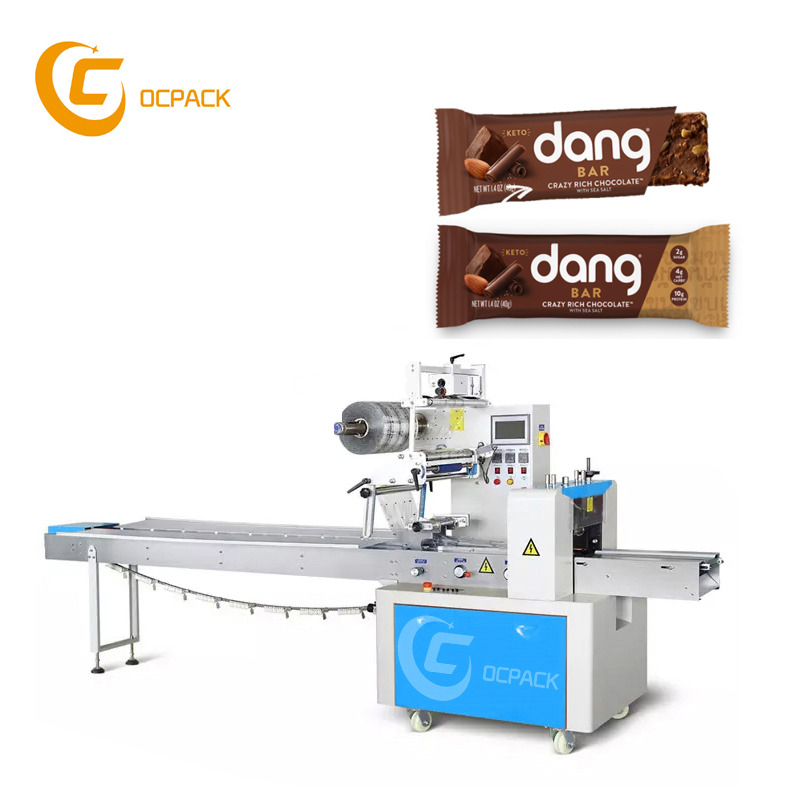

Products Description

Technical specifications
Type	OC-250B	OC-350B	OC-450B
Film width	Max.250mm	Max.350mm	Max.450mm
Bag length	65~190mm/120mm~280mm			130~450mm
Bag width	30~110mm	50~160mm	50~180mm
Product height	Max.40mm	Max.45mm	Max.80mm
Film roll diameter	Max.320mm
Packing rate	40~230bags/min			30~180bags/min
Machine weight	410KG	490KG	550KG

Application

>What do you want to pack?

Suitable for packing regular objects, such as bread, biscuits, moon cakes, cereal bars, ice cream,

Vegetables, chocolate, rusks,tableware, lollipops, etc.

Optional Devices

The packaging machine has date coding,fills the package with nitrogen,makes the linking bag,makes the easy tearing and pinches the package.

Machine display

Smart Screen

Brand: Weinview or customized according to your needs

Language: You can choose seven languages,

For example: English, Russian,Spanish, French,etc. You can also customize the language as needed.

Function: You can set and change the weight of the packaging material and the length of the bag

Material Conveyor Belt

* 304 Stainless steel fader type, PVC Belt, fader and plastic tray.

*Conveyor used food grade 304 stainless steel to ensure the good safely.

*The function of anti-aircraft bag can be added to keep materials in the packaging. When there is no material, the machine can automatically stop or alarm.

Bag Maker

*The bag making machine is made of 304 stainless steel and driven by a servo.

*The packaging film is pulled into the bag making machine by friction.

*The packaging is simple and beautiful, with a humanized design. Different bag making equipment can be replaced according to different bag widths. One machine can pack bags of various widths.

Cutting & Sealing Parts

*It is Stainless steel of material to making it will than the irol will be strong more, he life can using more then 2 years.
*According the products to choice the single knife or double knife. *Customized sealing patterns and notch or automatic punching
device. * Positioned with two screws, it is easy to replace,and it is easier to clean with a copper brush.

Contact us now

Tell us your requirements, tell us your product information,

we will have a professional staff to provide you with a most suitable packaging solution!

You can also send us samples, we can provide free trial packaging service!

Company Profile

Transaction customer

Why Choose Us

1. Professional and Strong Team

Ocpack has a professional team that can provide customers with various packaging solutions. After fully understanding the customer's needs, we provide the most suitable packaging solution to the customer. Then start the production of the machine. We have a strong production and processing capacity, from the customized processing of accessories to the assembly and debugging of the machine. Finally, it is packaged and shipped, and it only takes a week to complete.

2. Excellent transportation service

According to the needs of customers, we can provide sea transportation, air transportation, and land transportation services, so that you can get the machine as soon as possible. Provide door-to-door transportation services.

3. Timely and effective after-sales service

Choosing us is not only buying a machine, but also our professional and timely service.

1. When the machine is delivered, we will attach a video of the installation and operation of the machine, so that you can use the machine quickly.

2. All electrical appliances of our machines have a one-year warranty, and we will replace them if they fail. 3. When your machine fails, we will have professional engineers to provide professional online after-sales service to help you solve the problem.

4. If the problem cannot be solved online, we will arrange an engineer to repair it on site within a week.

Related Products

FAQ

1: How to find a Packing machine suitable for my product? Tell me about your product details. 1. What kind of product you have. 2. The size of your product( the length, width, and height). 2: Is an engineer available to serve oversea? Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end. 3. Are you a factory or trading company? We are the factory, and especially R&D, manufacture and sell various packing equipments. We have engaged in the packing R&D and production for over 10 years. 4. What's your payment way? T/T by our bank account directly, or by Alibaba trade assurance service, or by West Union, or in cash. 5. How can we make sure about the machine quality after we put the order? Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China. 6. We are afraid you won't send us the machine after we send you the money? Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality. 7. Why we should choose your company? We are professional in packing machines for over 10 years, and we provide better after-sales service. You guarantee no risk for our deal.
